OEM FTTH Outlets ISO14001 15s 5N Sc Upc Connector

  • 1
  • 2

Brand Name : SUNET/OEM

Model Number : SC/UPC

Certification : ISO9001 ISO14001

Place of Origin : Qingdao,China

MOQ : 1 pcs

Price : USD 0.29-0.35/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 3-8 work days

Packaging Details : Plastic Bag or as Order

Connector : Fast Connector SC UPC

Insertion loss : <0.3dB

Fiber type : SM/MM

Fiber cable type : 3x2mm Flat cable,3.1*2.0mm Butterfly Optical Cable

Application : FTTH FTTB FTTX Network

Color : Blue

Product name : Fiber Optic SC UPC Fast Connector

Lead time : 3-7working days

Contact Now

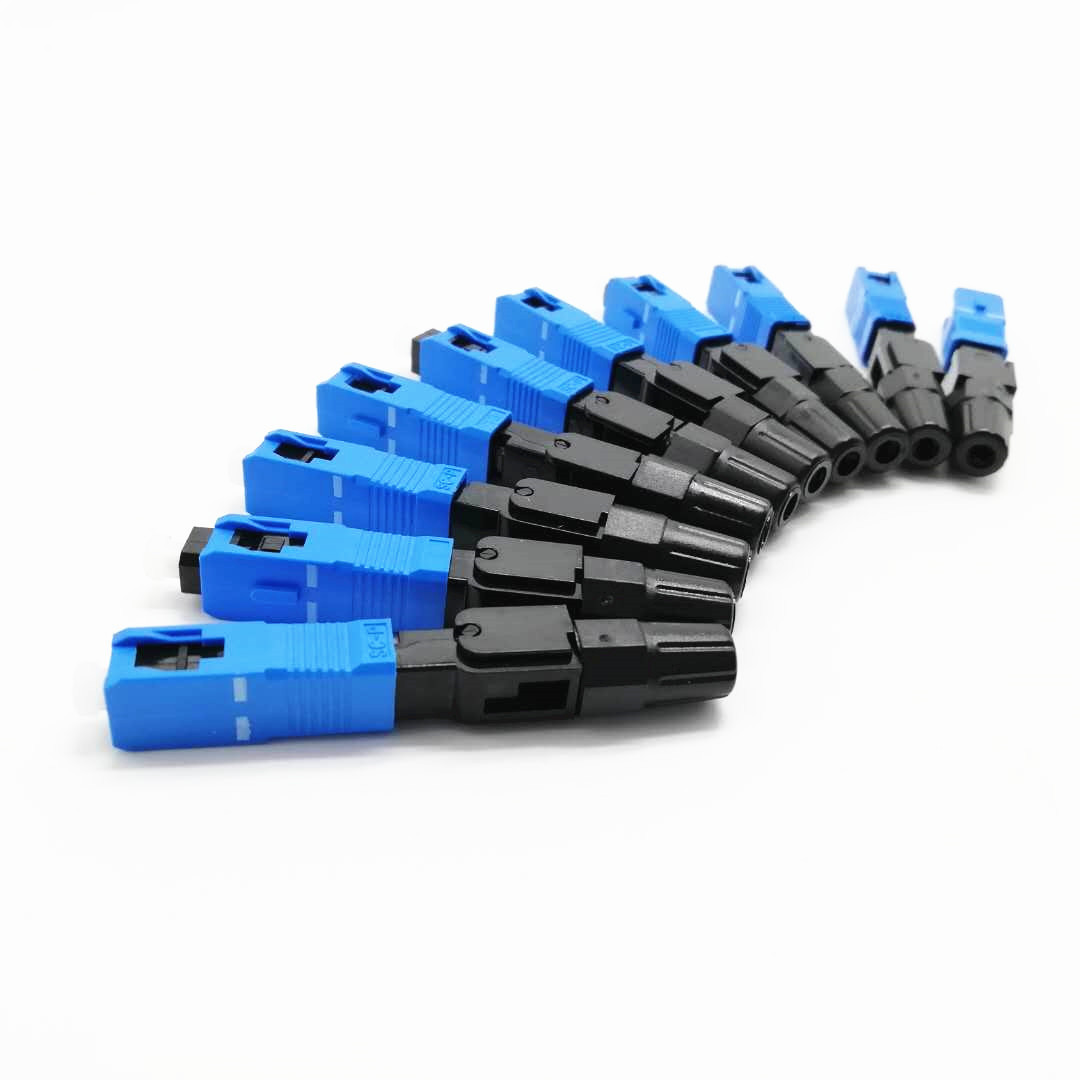

Sc/Upc FTTH Optical Fiber Assembly Fast Connector/Quick Connector

Description:

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.
Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features:

1.Quickly assembly connetor
2.High return loss,low insert
3.Cost effective portable
4.Install quickly
5.Reliable and superior optical performance

Application:

1.Patch panels
2.Distribution frames
3.Maintenance or emergency restoration of fiber networks
4.FTTH Outlets
5.Connection at the desk for LAN environments


​Parameters:

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ 60dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction,
three times total)		 IL ≤ 0.3dB
