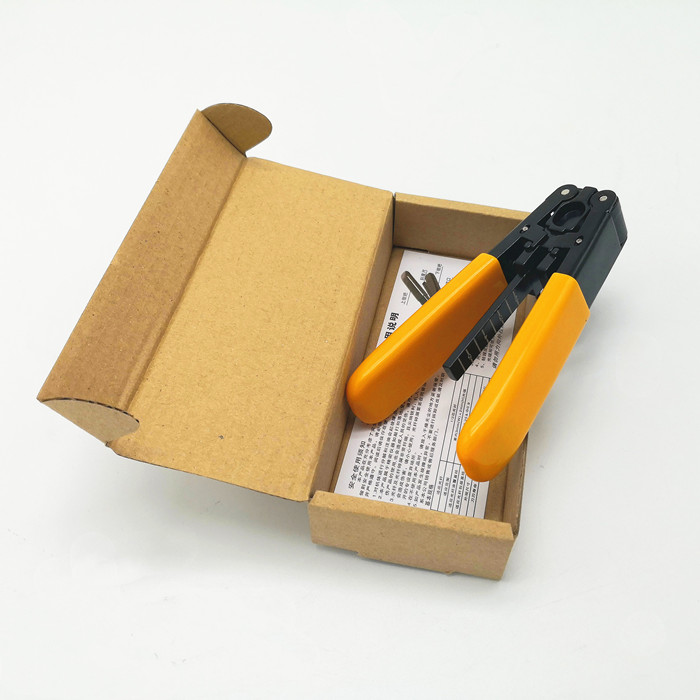

FTTB FTTH Tool Yellow Jacket Drop Cable Wire Stripper

FTTH Tool Yellow Jacket Drop Cable Wire Stripper

Description

FTTH fiber optic drop cable stripper is used to peel 250um coating of 125um fiber optic, 1.98mm open pore at the top uses to peel protective covering of fiber optic pigtail. After manufacturers preset all of sizes, you do not need to adjust .All of cutting ends has precise mechanical tolerance to make operation clean and smooth. Handset is designed by human engineering theory, so you will feel comfortable when grasping. Please make pliers in the closed position if you don't use it.

Feature

1.Universal Stripper for 3.1x2.0mm FTTH drop cables with steel wire or FRP strength member.
2.Made of zinc alloy steel with PVC non-slip handle.
3.Improve cable splicing, more efficient and easy to use.
4.Dimensions: 30 x 110 x 20 mm
5.For stripping 250 micron buffer coating to expose 125 micron clad fiber
6.Second hole for stripping 2-3mm fiber jackets
7.140µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125
micron fiber
8.Pre-set at the factory - no adjustments needed
9.Will not scratch or nick glass fiber
10.All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
11.Comfort-grip, ergonomic handles
12.Lock to hold tool closed when it is not in use

Application

1.FTTH Fiber Optic Drop Cable

2.fiber cladding diameter 125μm.

Specification

Drop Cable Wire Stripper

Yellow Jacket Cable Wire Stripper

FTTH Tool Cable Wire Stripper

FTTB FTTH Tool Yellow Jacket Drop Cable Wire Stripper Images
